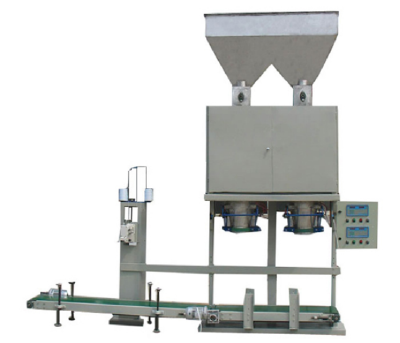

The series packaging machine is a new generation of intelligent double headed packaging. Unit is mainly composed of four spiral feeding device, automatic clamping bag weighing device. With a reasonable structure, beautiful appearance, stable operation, energy saving, easy to operate, fast packaging, high yield characteristics.

The host adopts four sets of feeding and weighing mechanism, faster. Advanced digital frequency conversion technology, sampling and processing technology, anti-jamming technology, and realize the automatic error compensation and correction, suitable for powder, granular, sheet materials, quantitative packaging.

Products are widely used in the industries of chemical pesticides, flour, milk powder, starch, sugar, additives, and fertilizers, feed, plastic powder, new building materials, food and other raw materials.

Equipment characteristics:

1 full stainless steel production process

2 ring clamping mechanism, so that the bag and the mouth sealed tight, can reduce dust spillover

Each of the 3 independent suspension chuck weighing sensor, signal transmission is stable, ensure weighing accuracy

Two 4 sets of independent weighing system, without interference, can be done at the same time the different specifications of the product

5 bins with arch breaking machine, in the spiral conveyor when playing loose material

6 weighing control system in accordance with the requirements of IP54 (dust and waterproof) design

Main technical parameters:

Packaging specifications: 10-50kg

Silo storage volume: 300 L

Applicable material: powder or powder mixture

Two mouth speed: 0-16 bag / min

Packing accuracy: (0.3-0.5)%

The amount of said party type: double double sensor

Frequency rate / electric pressure: 50Hz/380V

For electric party type: three-phase five wire

Equipped with power: 2.2kw

Overall size: 3600 x 1500 x x 3000 (mm)
