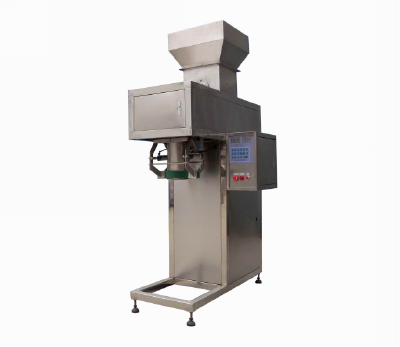

The series packaging machine is a new generation of intelligent electronic weighing packaging machine developed by our company. The structure has the advantages of reasonable structure, stable operation, convenient operation and high weighing precision.

Host of the fast and slow two speed feeding speed. Advanced digital frequency conversion technology, sampling and processing technology, anti-jamming technology, and realize the automatic error compensation and correction, suitable for powder, granular, sheet materials, quantitative packaging.

Products are widely used in food additives, chemical pesticides, flour, milk powder, starch, sugar, essence of chicken, monosodium glutamate, seeds, rice additives, fertilizer, feed, plastic powder, new building materials and other industries.

Equipment characteristics:

Full stainless steel production process

Electronic screen, PLC control technology, easy to operate

Independent suspension sensor, signal transmission and stability, to ensure the accuracy of weighing

Infrared sensor, two speed feeding system, high weighing precision

In the bunker with arch breaking in motor, screw conveyor when playing loose material

Ring clip bag mechanism, so that the bag and the mouth sealed tight, can reduce the dust overflow

With the feeding machine, conveyor, sealing machine is suitable for automatic control, improve efficiency and reduce labor intensity

Main technical parameters:

Model AT-DGS-25F

Suitable material powder, mixed material

Metering range 4-25 kg

Packaging precision 0.2-0.5%

Packing speed 3-8 bag / min

Feeding mode single screw

Gas pressure 0.4-0.6Mpa

Gas consumption 1 m3/h

Power / power 380V/1.5KW

External dimension (mm) 820 * 1400 * 2500mm
