- Place of Origin: zhengzhou
- Brand Name: huaxiaaote
- Model Number: AT-F420/520

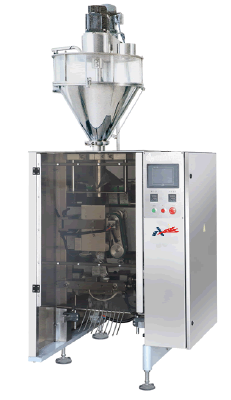

The machine is suitable for automatic packaging of powdery materials such as flour, fine white sugar, milk powder, gourmet powder, seasoning, food additive, pesticide, washing powder, health tea powder and traditional Chinese medicine powder.
Characteristic:
1 imported PLC, man-machine interface control system, touch screen operation is simple and intuitive.
2 servo film feeding system, accurate positioning, sealing and cutting position are automatic deviation correction device, high degree of automation.
3 intelligent temperature controller, temperature control is accurate, to ensure that the seal is beautiful and smooth.
4 perfect automatic alarm protection function, reduce the loss to the minimum.
5. The machine and metering device to be matched automatic feeding, measuring, filling, bag making, date printing packaging process, and automatic counting is completed.
6 bag type: the machine can be made according to customer needs pillow bags, punched hanging bags.
Main technical parameters
Packing speed: 5-70bags/min
Bag size: F420: (L) 80-300mm (W) 80-200mm
F520: (L) 80-400mm (W) 80-250mm
Measurement range: 50-2000ml
Packaging film width: F520:180-520mm F420:180-420mm
Packaging materials: PET/PE OPP/CE OPP/CPP and other composite materials
Film thickness: 0.04-0.08mm
Gas consumption: 0.65MPa 0.3m3/min
Power supply: 50Hz 3.5kw AC220V
Machine size: F420: (L) 1750 * (W) 1050 * (H) 2300mm
F520: (L) 1795 * (W) 1150 * (H) 2450 mm
Machine weight: F420:500 kg F520: 600 kg
